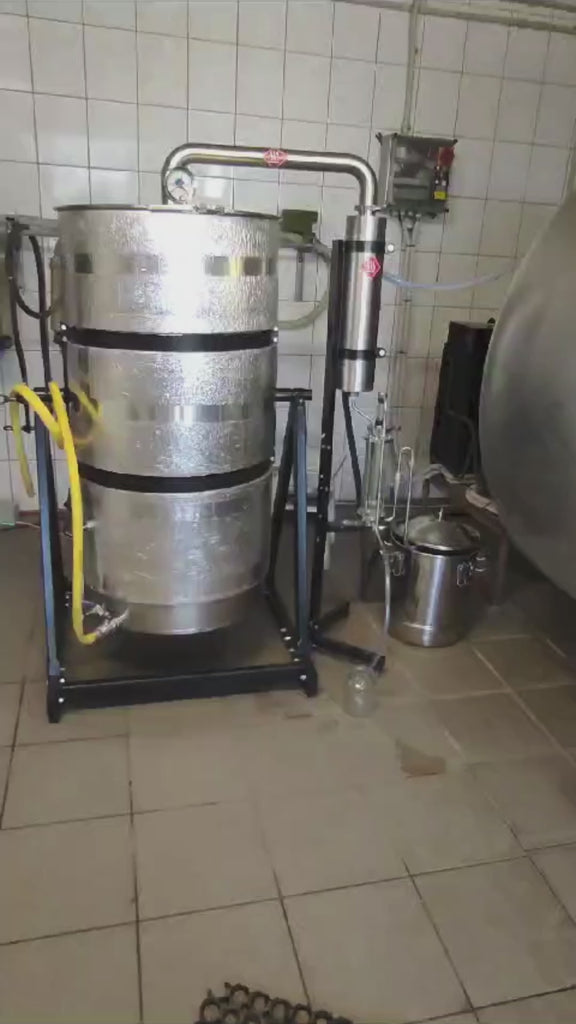

Commercial essential oil distiller 53G (220L) loading capacity 42G (180L)
1. saving labor costs / easy to operate - one person can easily operate the process from the loading to unloading.
2. giving max performance - absolute separation of EO from hydrosol due to our innovative separator.
3. easy to start - simple equipment assembly and startup process.
THE DISTILLER KIT CONSISTS OF:

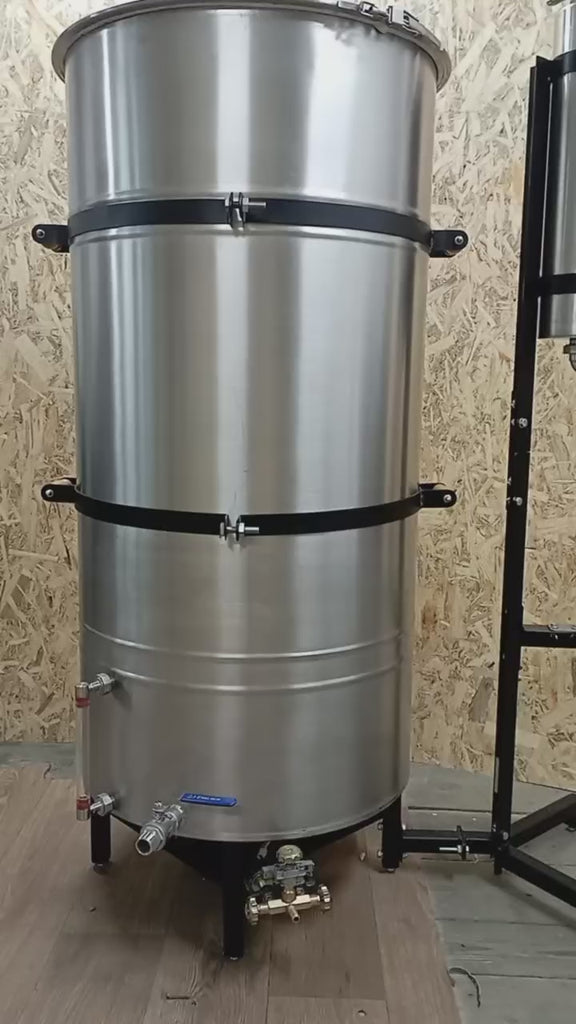

1. 53 gal /200 l tank with water lever, lid,
thermometer, pressure gauge, overpressure valve - 1 pc.
2. Main essential oil separator - 1 pc.
3. Additional oil separator, copper – 1 pc.
4. Stand for the 53 gal / 200 l tank and cooler - 1 pc.
5. Steam pipe - 1 pc.
6. Gas burner - 1 pc.
7. Sieve - 1 pc.
8. Stand for a sieve for 10 gal / 40 l - 1 pc
9. Heater 1,5 kW, 110 V / 3 kW, 220 V - 2 pcs - to be paid additionally
10. Plugs - 2 pcs.
11. Cooler - 1 pc.
Materials: stainless steel 304 (tanks, steam pipe, cooler), iron (stand), brass (fittings), glass.
By free shipping we mean free shipping to the nearest international airport. Pickup from the airport to be arranged by the client.
Additional information
| weight | 150 kg |
|---|---|
| dimensions | 120 × 80 × 100 cm |
| material | steel |
| bottom thickness (mm) | 3 |
| wall thickness (mm) | 1,5 |
| cover thickness (mm) | 1,5 |
User Manual
To get the manual, click here:➡️➡️ Manual
Shipping
By free shipping we mean free shipping to the nearest international airport. Pickup from the airport to be arranged by the client.
FAQ
Questions and Answers
Can I use it for hydrolats?
Yes, you can. The distillation process is the same
Is the indoor layer as copper or steel?
It’s copper inside
The circulating water to convert the steam to liquid needs water pipes to recooling. They are in the box?
Yes, the package includes silicon tubes to connect and supply the condenser with recooling water.
To put in circulating cool water at work it needs a water pump. It is in the box?
No, the pump is not included. The essential oil maker is meant to be used with water tap by using central water systems.
Copper work on Induction electrical heater?
No, copper distiller doesn’t work on induction electrical heater. In the case of using an induction heater, you have to buy an adapter. However, it will be cheaper to buy an electrical one.
